KE · Gennius A100

Pergola

Heavy-duty retractable pergola awning for smaller areas.

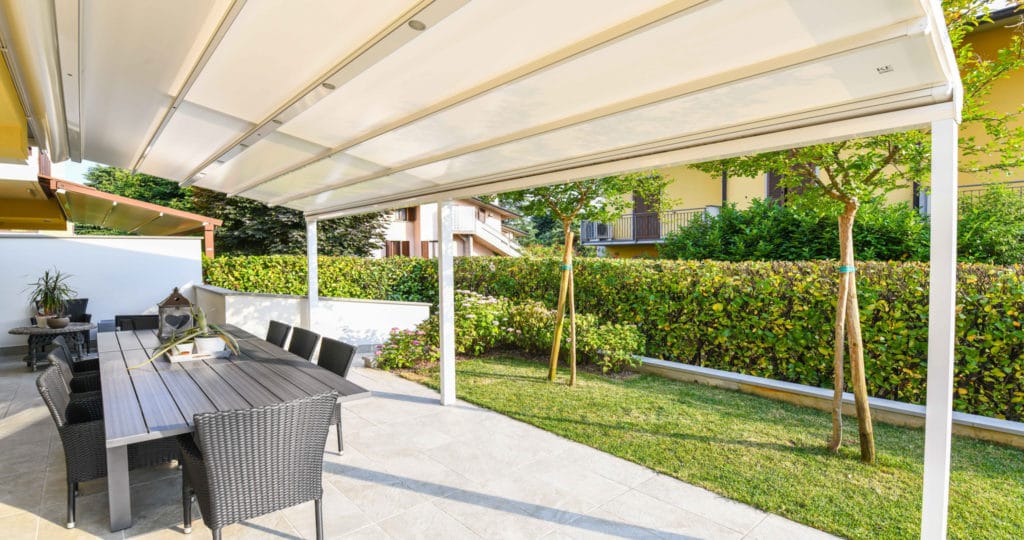

The Gennius A100 model is unique and perfect for shading smaller areas. This heavy-duty retractable pergola awning was specifically designed and engineered to handle inclement rain weather.

The Gennius A100 is an elegant-looking pergola, similar to the A2C model but slimmer in appearance due to its narrow profiles. The waterproof fabric is sealed against the patented side rails with a double gasket to prevent leaks as it directs rainwater through integrated gutters and downspouts.

Structural rafter and post columns are engineered with strong, extruded aluminum. Guide rails can be attached to brackets on a wall, soffit, or roof. Easy to install, the A100 is a durable, wind-resistant shading solution for many spaces. Optional gable ends are available to complete the enclosure for a finished appearance.

Widths wider than 14’9” require additional guide rails and posts. Width of a single unit goes up to 42’8” and projection up to 18’.

Fabric Options - 3-ply waterproof construction

Ferrari 602 is a waterproof blackout fabric that can block 100% of damaging and uncomfortable UV light and heat and prevents the visible shadow of debris such as leaves and twigs that can accumulate on the roof.
Ferrari 502 is a waterproof semi-translucent fabric that comes in a variety of colors.
Ferrari W96 is a clear-coated waterproof mesh for when transparency is desired.

The slope is essential to manage rainwater with the A100 system properly. An app on a mobile device can control the motorized operation.

An optional hood protects the motor assembly and keeps debris from collecting on the folded fabric when the A100 is retracted.

Create a complete enclosure with optional integrated zippered rail screens. Screens can operate manually or motorized. Fabric options include sun-screen mesh or crystal-clear vinyl windows.

A100 can also be installed without posts, mounted on top of a suitable existing structure to create a retractable roof space wherever needed.

Gennius A100 Details

Slim appearance
Light weight profiles
Guide rails attached to brackets on the wall, soffit or roof
Three fabrics available
Slope essential to manage and remove heavy rainwater
Motorized operation with remote control
Optional hood protects motor assembly and keeps debris from collecting in the folded fabric when it is retracted
Optional integrated "zip" curtains

Gennius A100 Technical Details

Sun resistance

Wind resistance, grade 6

EN13561	Beaufort Scale	Wind Speed (mph)	Level
Class 1	4	13-18 mph	Moderate Breeze
Class 2	5	19-24 mph	Fresh Breeze
Class 3	6	25-31 mph	Strong Breeze
Class 4	7	32-38 mph	Near Gale
Class 5	8	39-46 mph	Gale
Class 6	9	47-54 mph	Strong Gale
Class 7	10	55-63 mph	Storm
Class 8	11	64-72 mph	Violent Storm
Class 9	12	73+ mph	Hurricane

Maximum width: 42′8″
Maximum projection: 18′0″
Tested and certified CE
Automation

Introducing Goodwin-Cole with KE GENNIUS Pergolas - Innovation, refined design, flexibility in managing customized projects, and unique solutions are the winning features of the KE GENNIUS pergolas range, offered in collaboration with Goodwin-Cole Company, Inc.

Goodwin-Cole Company, Inc., known for its expertise as a fabricator and installer, is proud to bring the versatile GENNIUS range to life, working closely with contractors, architects, and business owners to create unique commercial shade projects. With 100 years of experience since 1888, Goodwin-Cole has established itself as a reliable and quality-driven company in Northern California.

The GENNIUS pergolas are perfect for enjoying outdoor spaces at home or for businesses like cafés and restaurants that seek to expand their covered seating options. These pergolas' reliability is unmatched, designed to withstand all seasons and with an elegant Made-in-Italy guarantee.

The GENNIUS structures effectively reduce heat losses throughout winter, allowing better control over indoor temperatures. Additionally, their side closings enable the use of outdoor areas even on rainy days. In the summer, these structures optimize the impact of sunlight, minimizing overheating and reducing the need for air conditioning.

Managing the opening and closing phases of the pergolas is made simple with an App for smartphones or tablets. With this, you can quickly adapt your outdoor space to the changing weather and preferences.

Goodwin-Cole and KE guarantee a highly reliable and enduring technological product designed to make outdoor spaces livable all year round, enhancing every building with an added elegance. Rest assured. All GENNIUS products are thoroughly tested and carry the CE marking, ensuring further quality assurance.

When it comes to customized shade solutions and reliable pergolas, Goodwin-Cole Company, Inc. is your proper one-stop solution in collaboration with KE GENNIUS. With a century of experience and thousands of satisfied customers, Goodwin-Cole is a trusted partner for your shading needs.
